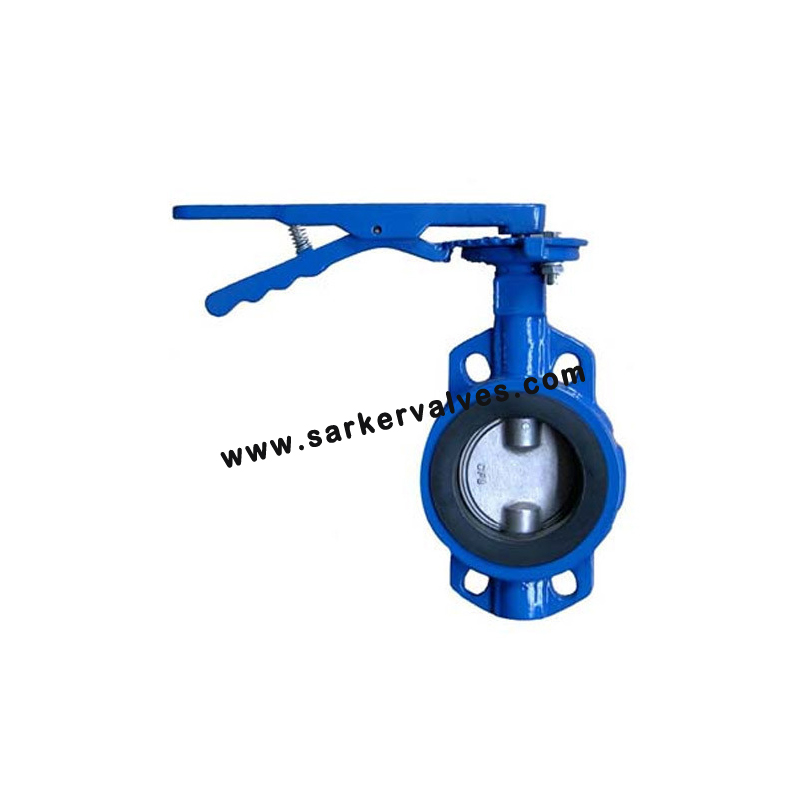

Butterfly Valves

Pressure relief Butterfly valves are flow control devices that isolate or regulate the flow of any fluid. The closing mechanism of a butterfly valve is a rotating disk. Its extending utilization all through various businesses, butterfly valve castings are extremely high popular, universally. In this way, we should investigate the fundamentals of these valves to comprehend their significance.

How does it operate?

The basic principle of operation is identical to that of a ball valve, which allows for quick shut off of flow. Usually, people are more biased towards the former because of their comparatively lower cost than the latter. Besides, butterfly valves are lighter in weight, hence requiring much less support. A butterfly valve's basic functioning design is:

•    A Disc is placed at the center of a pipe.

•    A steel rod passes through that disc to an actuator placed outside of the butterfly valve.

•    Rotating the actuator - the disc can be turned parallel or perpendicular to the flow.

•    Due to the constant presence of the disc within the flow unlike the ball valve, there is a pressure drop induced even when open.

These butterfly valve belongs to the group of quarter-turn valves. While operating the valve, it completely opens or closes with the rotation of a quarter-turn of the disc. The butterfly valve comprises nothing but a disc made of metal, which is placed on a rod. The disc is twisted at the time when the valve remains closed and this ends up blocking out the passageway, whereas, when completely open, the disc on the valve gets a quarter-turn rotation, to allow the fluid flow in a smooth manner. The valve can be opened in a gradual increasing method, to enable full throttle of the flow.

Different Kinds of Butterfly Valves

• Rotary Valve: These kinds of valves comprise a variation of the basic butterfly valve where pockets are included in the butterfly as an alternative to being flat.
• Lug-style butterfly valve: In these valves, both ends of the body have threaded inclusions that enable the installation of the valves into a system that has just two-bolt sets, without any nuts. This setup allows either side of the piping arrangement to be disconnected without affecting the other side.
• Wafer-style butterfly valve: These butterfly valves are designed to keep up a blockage against the pressure gap that is bi-directional, to stop it from flowing back in systems that are meant to have unidirectional flow.

Usage of Butterfly Valves in Industries

• These types of valves are frequently used in the chemical, pharmaceutical as well as the food industry.
• These are also abundantly used on front and rear suction ports, tanks, and water pumps.
• In the case of specific valves, the valve may perform additional functions, for example - cast iron butterfly valves not only act as a regulatory device but can stop and start the flow as desired.
• Butterfly valves are also used by firefighters on their pipe hoses to limit their pressure.
