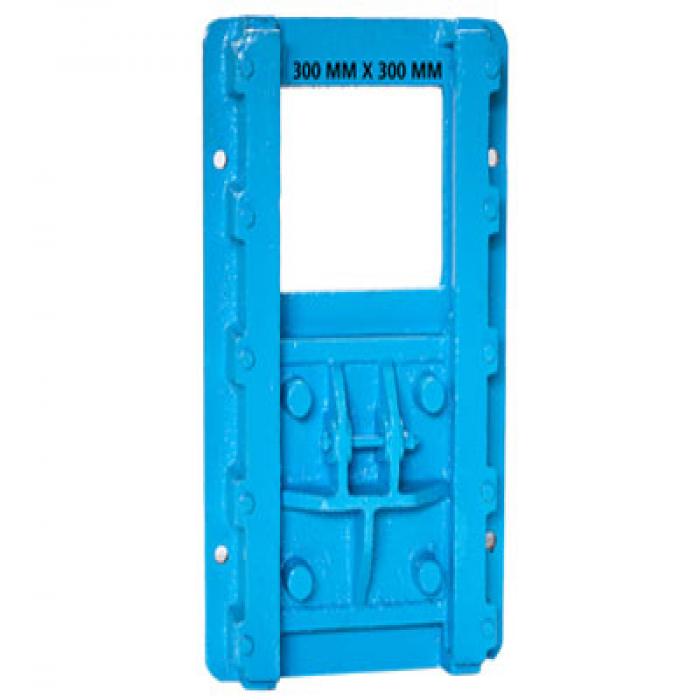

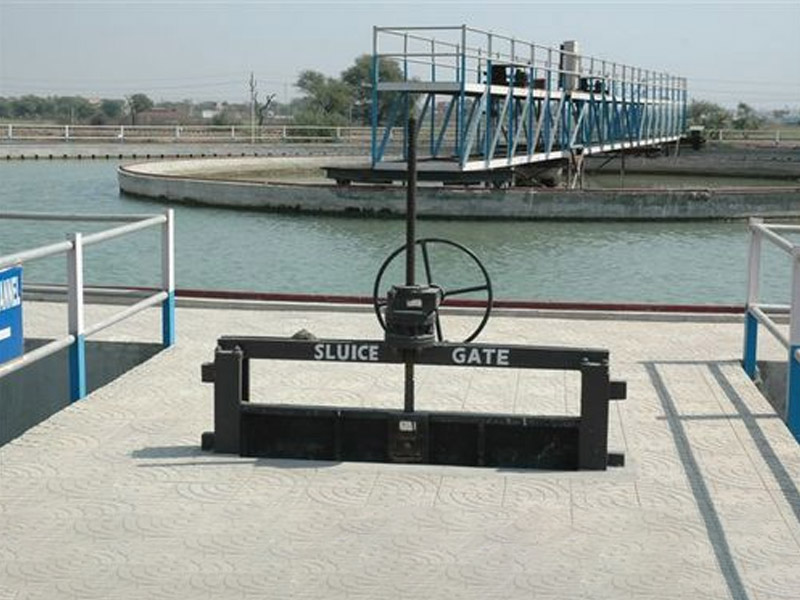

1. Open Channel Gate Side Wall Mounted

• Application: These Gates are generally used to either stop or release the water in open channels
• Mounting: The Gates can be embedded or mounted between two parallel walls
• Material of Construction: Cast Iron to IS 210 Gr. FG 200 / 260 or MS/SS fabricated. Seats can be in Naval Brass / Gun metal / Stainless Steel / Rubber
• Shape or Type: Square / Rectangle
• Operation: Manual or Motorized
• Range: 200 mm to 2000 mm
• Design & Testing: As per IS 5620 / AWWA C561 OR Manufactures Standard

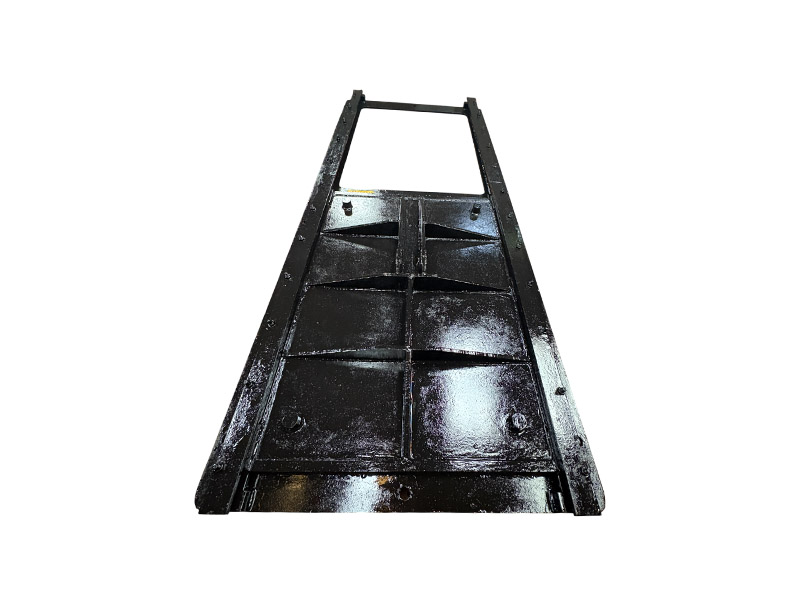

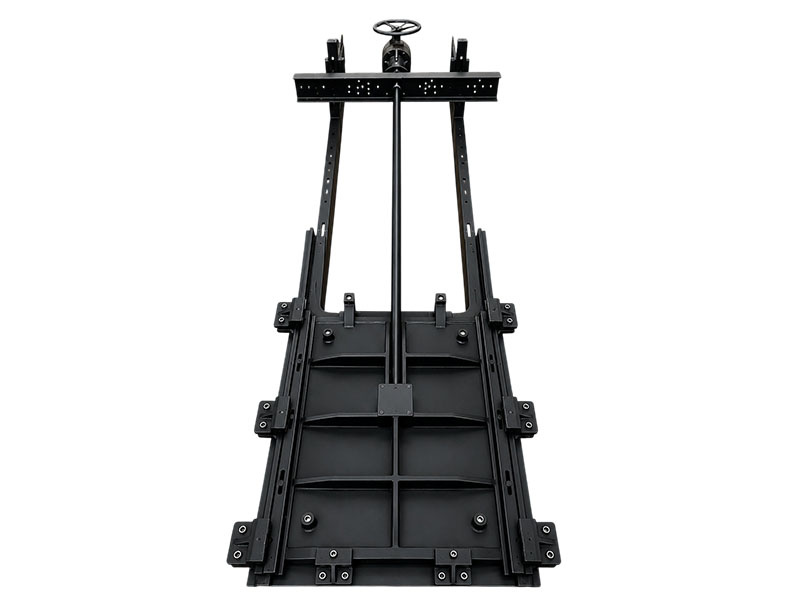

2. Wall Thimble Mounted Gate

• Application: Wall Thimble Mounted Sluice Gates are generally used in a closed conduit channel for closing or controlling the water flow.
• Material of Construction: Cast Iron to IS 210 Gr. FG 200 / 260 or MS Fabricated / SS Fabricated
• Mounting: Wall - Thimble Mounted
• Shape: Square / Rectangular / Round.
• Sealing Arrangement: Metal to Metal Seat (Naval Brass / SS 304/316 Bronze)
• Bottom Closure: Conventional / Flush Bottom Closure
• Resilient Flush Bottom closure seat: Nitrile / EPDM
• Operation: Manual / Geared / Motorised
• Range: 200 mm to 2000 mm
• Design & Testing: As per IS 13449 or AWWA  C501

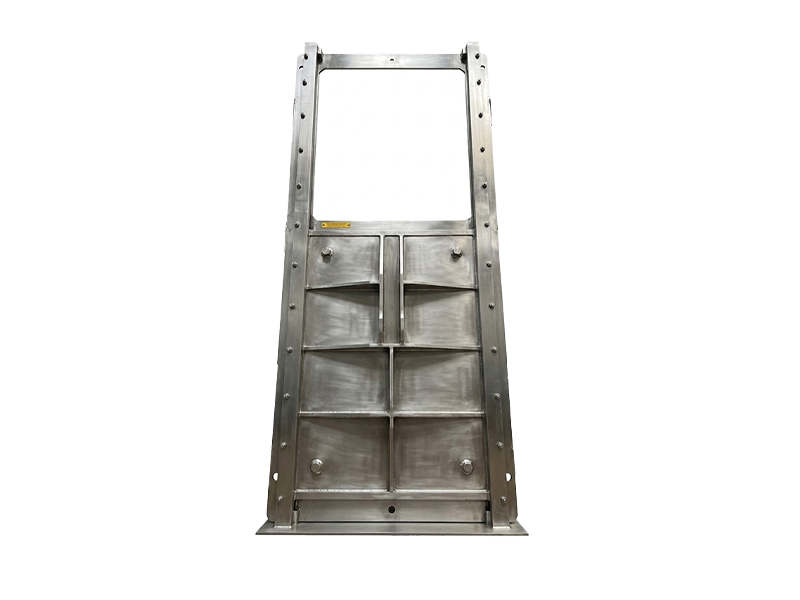

3. Wall Mounted Gate

• Application: Wall Mounted Sluice Gates are generally used in a closed conduit channel for closing or controlling the water flow.
• Material of Construction: Cast Iron to IS 210 Gr. FG 200 / 260 or MS Fabricated / SS Fabricated
• Mounting: Face Wall Mounted
• Shape: Square / Rectangular / Round.
• Sealing Arrangement: Metal to Metal Seat (Naval Brass / SS 304/316 Bronze)
• Bottom Closure: Conventional / Flush Bottom Closure
• Resilient Flush Bottom closure seat: Nitrile / EPDM
• Operation: Manual / Geared / Motorised
• Range: 200 mm to 2000 mm
• Design & Testing: As per IS 3042

4. Weir Gate

• Application: Weir Gates are generally invert opening gates used for dewatering of reservoirs / tanks or to maintain required water levels in reservoirs in compliance with the Wall Mounted or Thimble Mounted Gates
• Material of Construction: Cast Iron to IS 210 Gr. FG 200 / 260 or MS fabricated. Seats can be in Brass / Gun Metal / Stainless Steel
• Type and shape: Square / Rectangle / Circular
• Range: 200 mm to 2000 mm
• Design & Testing: Sarker Valves

5. Trash Screen

• Application: Trash Screen are generally used to arrest large floating objects such as wood logs, tree, debris, branches, bottles etc to flow into the reservoir
• Material of Construction:
  • Vertical Frame: Mild steel IS 2062 / Channel ISMC / SS
  • Horizontal Frame: Mild steel IS 2062 / Channel ISMC
  • Screen Bars: IS 2062 Gr. A Bars (Vertical & Horizontal)
  • Bearing Pad: IS 2062 Gr. A
  • Rollers: Stainless Steel / PTFE
• Design & Testing: Manufacturer’s Standard
